Floor drain Saga 110 bottom

Beskrivning

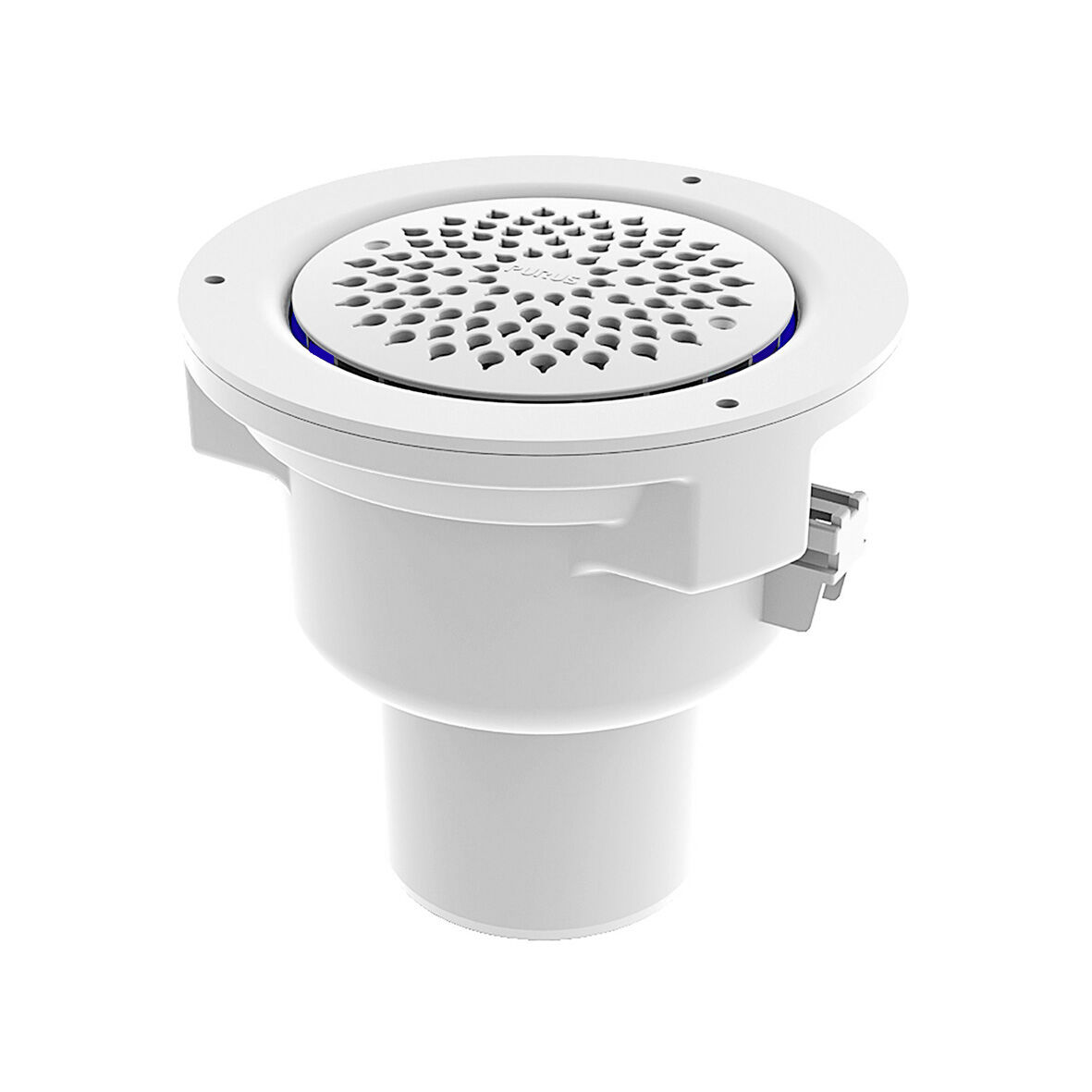

The Saga 110 Vertical floor drain has a 110mm vertical outlet and is suitable for installation in concrete joists. The floor drain has a built-in extension ring. This extension ring should sit in its lowest position when casting the concrete; and after grouting, the upper part can then be raised by a maximum of 15mm and can be angled up to 4° from its starting position. The Saga floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
